| USB & External Storage | |
| Supported File Systems | FAT32, NTFS, exFAT |
| USB Functions | File Sharing, Printer Sharing |
| USB Ports | 1 x USB 3.0 |
| Wireless Specifications | |
| Beamforming | Yes |
| Channel Width | 20MHz, 40MHz, 80MHz, 160MHz |
| Frequency Bands | 2.4GHz, 5GHz |
| Max Wireless Speed | 3000 Mbps (574 Mbps on 2.4GHz + 2402 Mbps on 5GHz) |
| MIMO Technology | Yes, 4x4 |
| Modulation Technology | 1024-QAM |
| MU-MIMO Support | Yes |
| OFDMA Support | Yes |
| Transmission Power | Not explicitly specified (typically around 20-23 dBm for consumer routers) |
| Wi-Fi Band | Dual-band (2.4GHz and 5GHz) |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| Router Features | |
| Bandwidth Control | Yes |
| DHCP Server Support | Yes |
| Dual-Band Steering | Yes |
| Dynamic DNS (DDNS) Support | Yes |
| IPv6 Support | Yes |
| Port Forwarding | Yes |
| QoS (Quality of Service) | Yes, Application-based |
| WPS (Wi-Fi Protected Setup) | Yes |
| Security & Firewall | |
| Access Control Lists | Yes |
| Encryption Support | WPA, WPA2, WPA3 |
| Guest Network Support | Yes |
| MAC Address Filtering | Yes |
| VPN Support | PPTP, L2TP, IPSec |
| Power & Energy Efficiency | |
| Energy-Efficient Ethernet (EEE) | Yes |
| Power Consumption | Not explicitly specified (typically around 10-15W for Wi-Fi 6 routers) |
| Power Supply Type | External |
| Wired Connectivity | |
| LAN Ports | 4 x Gigabit Ethernet ports (10/100/1000Mbps) |
| WAN Port | 1 x Gigabit Ethernet port (10/100/1000Mbps) |
| Management & Control | |
| Logs & Reporting | Yes |
| Mobile App Support | Yes, Tenda Wi-Fi App |
| Remote Management | Yes |
| Scheduled Reboot Option | Yes |
| Web Interface | Yes |
| Physical Design & Dimensions | |
| Dimensions (W x H x D) | Approximately 260 x 160 x 60 mm |
| LED Indicators | Power, Internet, LAN, Wi-Fi, USB |
| Mounting Options | Desktop |
| Weight | Approximately 0.5 kg |
| Packaging & Accessories | |
| Box Dimensions (W x H x D) | Not explicitly specified |
| Box Weight | Approximately 1 kg |
| Included Accessories | Power Adapter, Ethernet Cable, User Manual |
| Warranty & Support | |
| Warranty | 01-year official warranty |

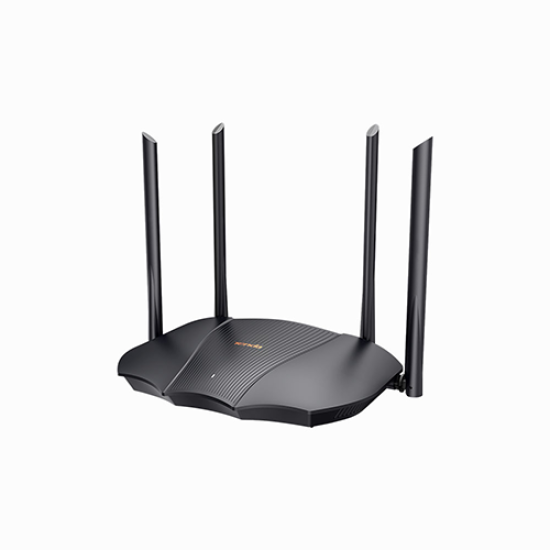

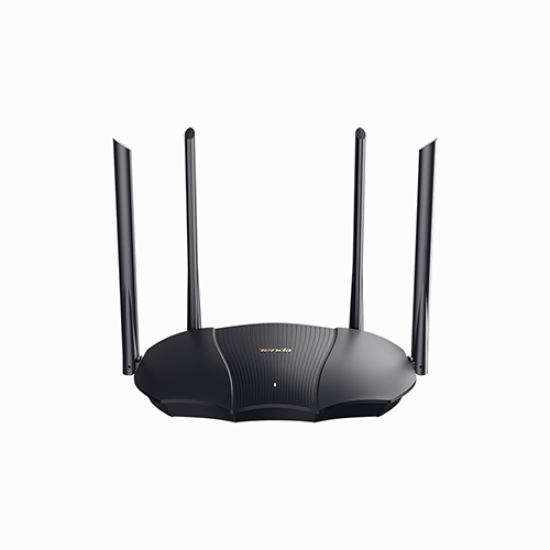

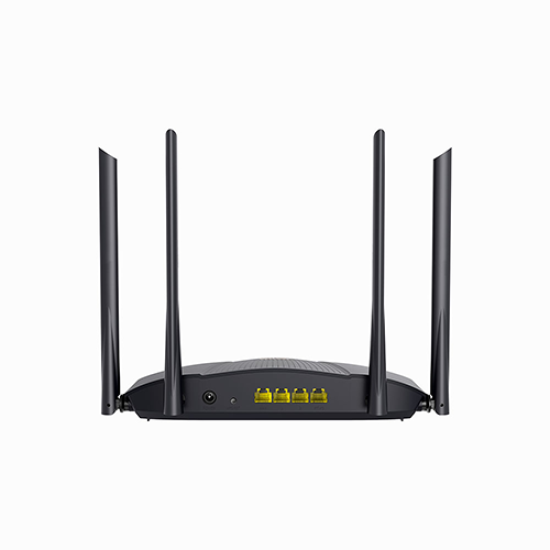

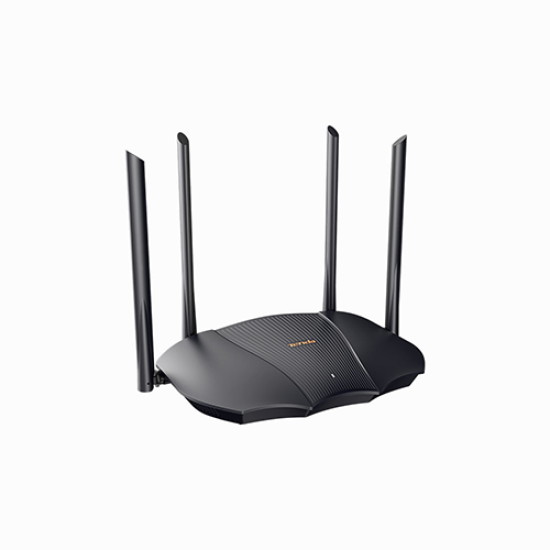

The Tenda RX9 Pro is a Wi-Fi 6 router that supports dual-band connectivity with a combined speed of up to 2976 Mbps (574 Mbps on the 2.4GHz band and 2402 Mbps on the 5GHz band). It is powered by a dual-core 1.6GHz CPU, providing robust processing capabilities for more stable operation. To enhance spectrum utilization and communication efficiency, the RX9 Pro utilizes an external FEM (Front End Module) design for both the 2.4GHz and 5GHz bands. This technology significantly increases transmission efficiency, reduces latency, and allows more devices to connect to the Internet simultaneously through OFDMA and MU-MIMO technologies.
With 160MHz bandwidth and 1024-QAM, the Tenda RX9 Pro delivers an incredibly fast wireless connection. The dual-core CPU can achieve an operational capacity of up to 3000 DMIPS, while the NPU processing speed reaches 2220 MHz, which improves network load handling and responsiveness. The RX9 Pro supports the WPA3 Wi-Fi security standard, which makes it more difficult for attackers to crack network algorithms and passwords, thereby enhancing security against forced attacks.
For expanded Wi-Fi coverage, the router features four 6dBi external omnidirectional dual-band antennas along with four independent FEM modules for enhanced signal amplification. Additionally, the router supports the IPv6 protocol, which offers a significantly larger number of available IP addresses compared to IPv4. This helps speed up data transmission times between Internet-connected devices and servers, providing unrestricted Internet access. The Tenda RX9 Pro Dual-Band Router also comes with a one-year warranty.
