| USB & External Storage | |
| Supported File Systems | FAT32, NTFS, exFAT |
| USB Functions | File Sharing, Printer Sharing |
| USB Ports | 1 x USB 3.0 |
| Wireless Specifications | |
| Antenna Type | 5*6dbi external antennas |
| Beamforming | Yes |
| Button | 1*WPS/Mesh button 1*Reset button |
| Channel Width | Yes |
| Frequency Bands | 2.4GHz, 5GHz |
| Max Wireless Speed | 3000 Mbps (574 Mbps on 2.4GHz + 2402 Mbps on 5GHz) |
| MIMO Technology | Yes, 4x4 |
| Modulation Technology | 1024-QAM |
| MU-MIMO Support | Yes |
| OFDMA Support | Yes |
| Transmission Power | Not explicitly specified (typically around 20-23 dBm for consumer routers) |
| Wi-Fi Band | Dual-band (2.4GHz and 5GHz) |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| Network Standard | IEEE802.3, IEEE802.3u, IEEE802.3ab |
| Router Features | |
| Bandwidth Control | Yes |
| DHCP Server Support | Yes |
| Dual-Band Steering | Yes |
| Dynamic DNS (DDNS) Support | Yes |
| IPv6 Support | Yes |
| Port Forwarding | Yes |
| QoS (Quality of Service) | Yes, Application-based |
| WPS (Wi-Fi Protected Setup) | Yes |
| Security & Firewall | |
| Access Control Lists | Yes |
| Encryption Support | WPA, WPA2, WPA3 |
| Guest Network Support | Yes |
| MAC Address Filtering | Yes |
| VPN Support | PPTP, L2TP, IPSec |
| Power & Energy Efficiency | |
| Energy-Efficient Ethernet (EEE) | Yes |
| Power Consumption | Not explicitly specified (typically around 10-15W for Wi-Fi 6 routers) |
| Power Supply Type | External |
| Wired Connectivity | |
| LAN Ports | 4 x Gigabit Ethernet ports (10/100/1000Mbps) |
| WAN Port | 1 x Gigabit Ethernet port (10/100/1000Mbps) |
| Management & Control | |
| Logs & Reporting | Yes |
| Mobile App Support | Yes, Tenda Wi-Fi App |
| Remote Management | Yes |
| Scheduled Reboot Option | Yes |
| Web Interface | Yes |
| Physical Design & Dimensions | |
| Dimensions (W x H x D) | Approximately 260 x 160 x 60 mm |
| LED Indicators | Power, Internet, LAN, Wi-Fi, USB |
| Mounting Options | Desktop |
| Weight | Approximately 0.5 kg |
| Color | White |
| Packaging & Accessories | |
| Box Dimensions (W x H x D) | Not explicitly specified (typically slightly larger than the router dimensions) |
| Box Weight | Approximately 1 kg |
| Included Accessories | Power Adapter, Ethernet Cable, User Manual |
| Warranty & Support | |
| Warranty | 01-year official warranty |

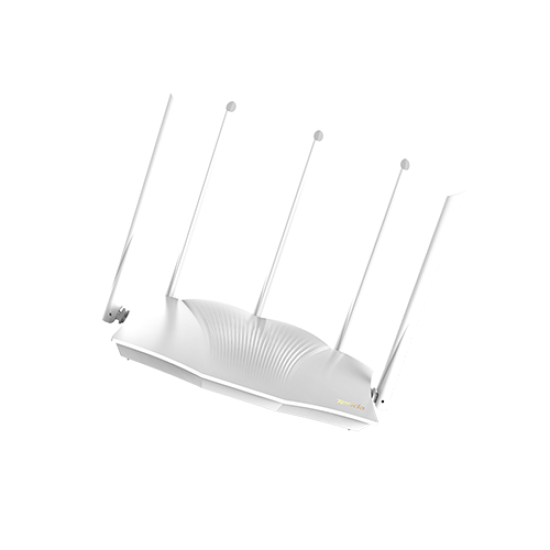

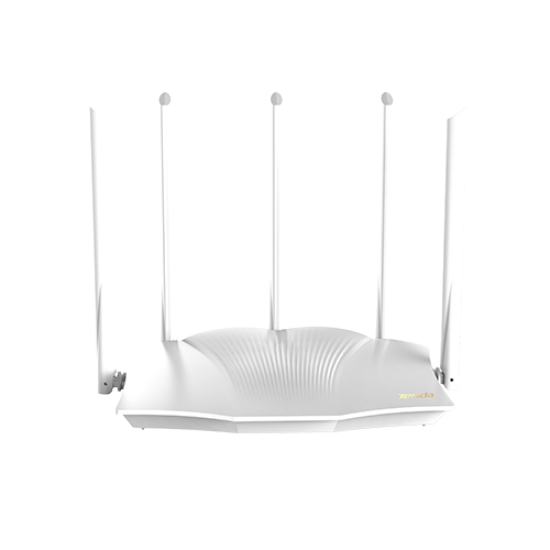

The Tenda TX12 Pro v2.0 AX3000 is a high-performance dual-band Gigabit Wi-Fi 6 router designed to deliver combined speeds of up to 3000 Mbps, making it perfect for fast, stable, and efficient internet connectivity. It offers data throughput of 2402 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band while supporting the latest IEEE 802.11ax wireless standard.
This router utilizes beamforming technology to provide excellent signal direction and wide coverage through its five external 6 dBi antennas and MU-MIMO capabilities. Additionally, its advanced OFDMA and 1024-QAM modulation enhance data transmission efficiency, while the 160 MHz bandwidth boosts overall performance to meet contemporary high-speed internet demands. The TX12 Pro v2.0 features three Gigabit LAN ports and one Gigabit WAN port, accommodating various connection types, including L2TP, PPTP, Dynamic IP, Static IP, and PPPoE. It also boasts extensive wireless security options, including WPA3-SAE, WPA2-PSK, WPS rapid encryption, and SSID hiding.
Parental control features are integrated into the router, offering time restrictions, URL filters, and client filtering. Additional unique attributes include support for IPTV, guest networks, smart diagnostics, mesh Wi-Fi, bandwidth control, and more. Users can manage the Tenda TX12 Pro v2.0 through static routing, online firmware upgrades, remote web management, and dedicated app and web management, all while enjoying IPv6 compatibility. The router also includes virtual server capabilities for advanced users, such as port forwarding and DMZ host support, along with VPN compatibility for PPTP, L2TP, and IPSec.
Guarding against threats, the TX12 Pro v2.0 features a robust firewall that protects against ICMP, TCP, and UDP flood attacks, ensuring a safe and secure internet connection. Its sleek and compact design, measuring 267x166x222 mm, is complemented by intelligent LED controls that enhance its modern aesthetic.
